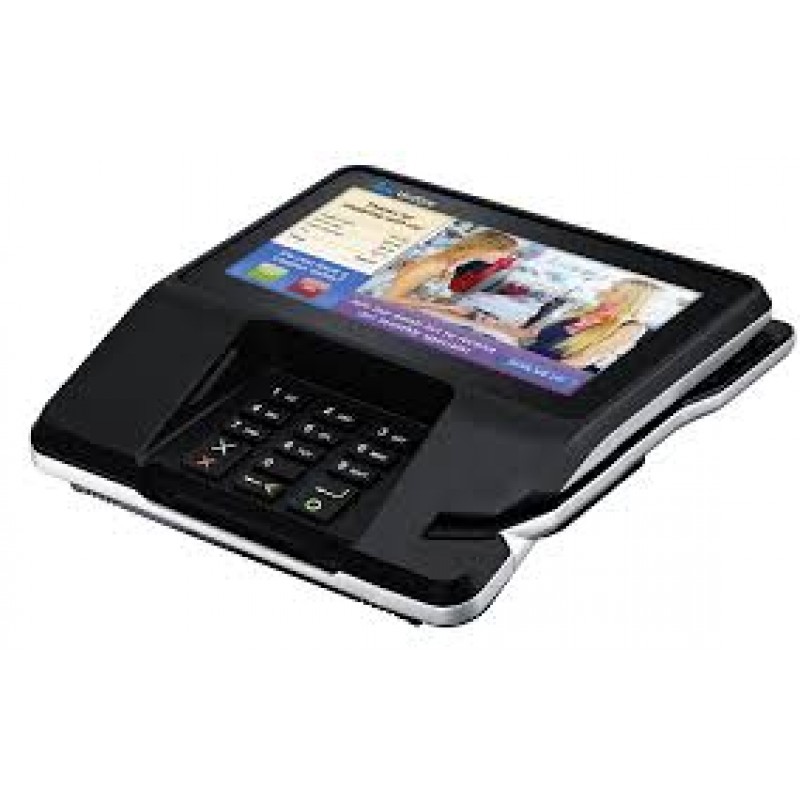

Verifone MX915CTLS Universal

The MX 915 Universal is designed to engage consumers in new ways with its full-motion video display and slim, space-saving design. It captures consumers' attention without adding to lane or countertop clutter.

The MX 915 delivers a rich media experience with a clear, 4.3" color display, high-speed processor and generous memory. This elegantly designed, sleek and space-saving unit supports full-motion video - driving new revenue opportunities while enhancing customer interaction. It is NFC-enabled to capitalize on the coming wave of smartphone transactions, in addition to supporting EMV-approved chip and PIN payments. It's a complete media solution package that easily captures the attention of consumers.

SPECIFICATIONS
Processor
400 MHz | ARM11 32-bit RISC processor
Memory
512MB (256MB Flash, 256MB SDRAM), Flash is field upgradable via USB
or
SD memory devices
Display
4.3” (480 x 272) | capacitive touch screen | Corning
®
Gorilla
®
Glass
technology
Operating System
Embedded Linux with Verifone security enhancements
Connectivity
Connect I/O with Ethernet 10/100BaseT, USB host/device, serial interfaces
RS-232, RS 485 | IBM Tailgate | Wi-Fi | bluetooth optional | compatible
with
existing MX
800 Series
cabling solutions
Audio
Single speaker, line out port available to drive externally powered speakers
Card Readers
Triple track bi-directional MSR | landed smart card
Contactless
ISO14443 A&B | MiFare | ISO18092 capable | EMVCo L1 and L2
certification | supports major NFC/contactless schemes
Applications
Form Agent | IBM EFT | NCR EFT
Other Standard
Features
Up to 3 SAM slots | software controllable prompts | stylus – field replaceable |
built-in graphical processor
Security
PCI PTS 4.0 approved
Power
Power pack output requirements: 12W, 12-24VDC, power pack input
requirements: 100-240VAC, 50/60Hz.
Environmental
0° to 40° C (32° to 104° F) operating temperature | -18°
to +66° C (0° to 150° F)
storage temperature | 15% to 95% relative humidity, non-condensing
Physical
56mm (2.2in) H x 182mm (7.2in) W x 225mm (8.9in) D; 0.6kg (1.3lbs) weight
